Marine

Fexilon provides the following CAE & CFD solutions to Marine industry:

Flow Simulations:

  • Propeller System Optimization
  • Flow Pattern predictions
  • Characterisation of Hydrodynamic effects
  • Aerodynamic Interactions
  • Maneuverability investigation

Structural Simulations:

  • Dynamic response simulation
  • Strength analysis
  • Load path analysis
  • Structural Optimization
  • CAE & CFD Software Optimisation

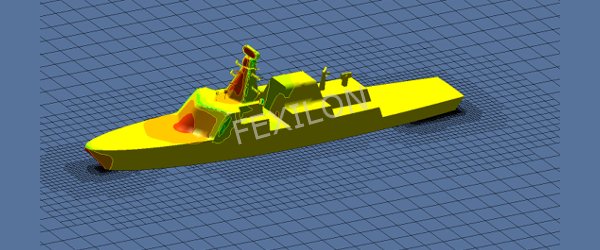

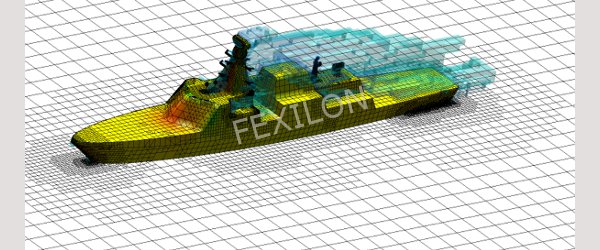

Aerodynamic Characterization of a Ship

Aim

  • To establish the aerodynamic characteristics of the ship

Accomplishments:

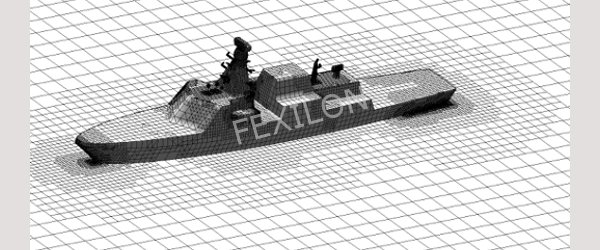

  • High Quality mesh generated
  • Performed Mesh-sensitivity studies
  • Captured Aerodynamic profiles for relative velocities ranging from 15 – 20 m/s
  • Established the velocity, streamlines, turbulence characters etc.
Back to Case Studies ∧

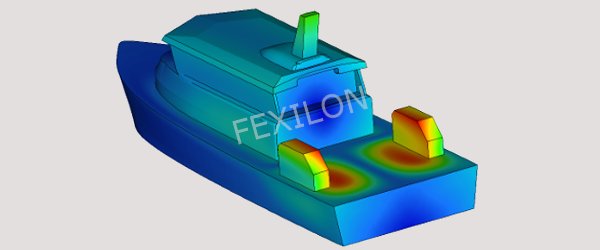

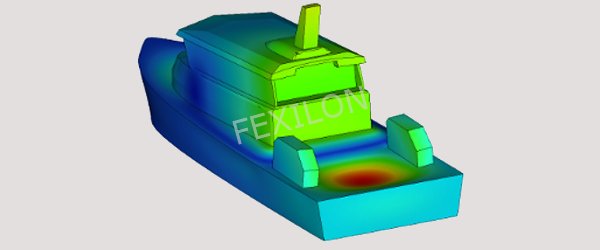

Structural analysis of a mid-size boat

Aim

  • To simulate structural behaviour of the boat

Accomplishments:

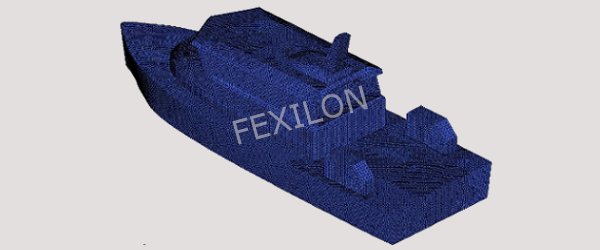

  • Built the FE model of the boat from geometry
  • Loading and BCs defined
  • Estimated the Load-carrying Capacity through simulations
  • Optimized the Structure for strength & rigidity
Back to Case Studies ∧

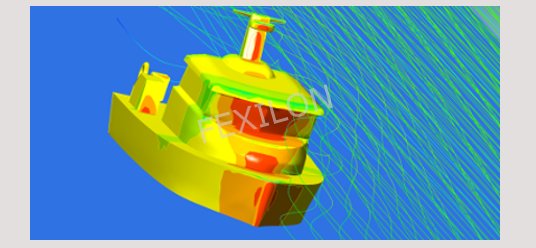

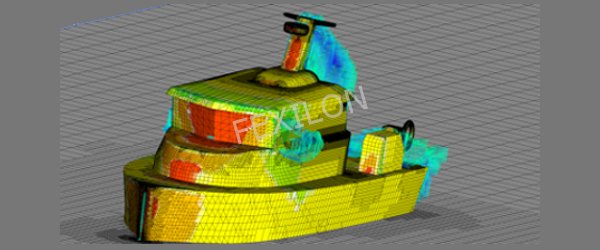

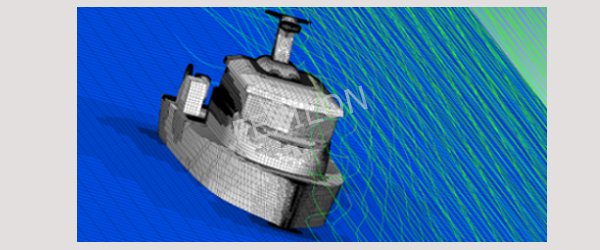

Wind-load simulation of a boat

Aim

  • To simulate the wind-loads on the boat

Accomplishments:

  • Model cleanup performed
  • Meshing & Parametrization done for various yaw angles
  • Established the aerodynamic-resistance of the boat various angles & speeds
Back to Case Studies ∧
